MT-353

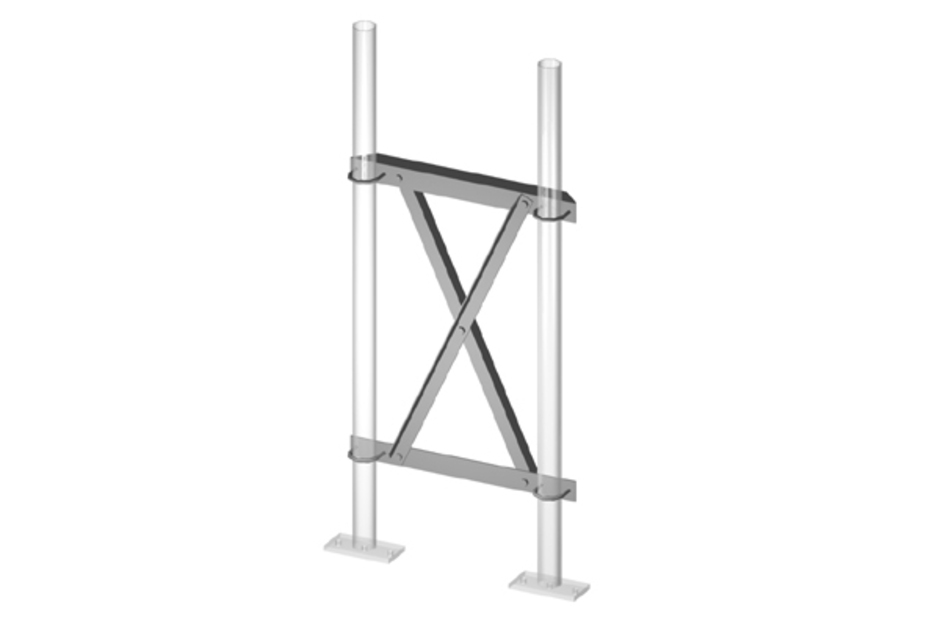

X-Bracing Kit for 24 in wide bridge kit
Specifications
Specifications
Product Classification
| Product Type | X-bracing kit |
General Specifications
| Application | Waveguide bridge kit, 24 in |
| Mounting | Pipe, 88.9 mm (3-1/2 in) OD |
Dimensions
| Height | 101.6 mm | 4 in |
| Width | 965.2 mm | 38 in |
| Length | 1219.2 mm | 48 in |
Outline Drawing
| Click on image to enlarge. |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Braces | U-bolts |
| Packaging quantity | 1 |
| Weight, net | 20 kg | 44.092 lb |
Product Classification
| Product Type | X-bracing kit |
General Specifications
| Application | Waveguide bridge kit, 24 in |
| Mounting | Pipe, 88.9 mm (3-1/2 in) OD |
Dimensions
| Height | 101.6 mm | 4 in |
| Width | 965.2 mm | 38 in |
| Length | 1219.2 mm | 48 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Braces | U-bolts |
| Packaging quantity | 1 |
| Weight, net | 20 kg | 44.092 lb |
| Click on image to enlarge. |
