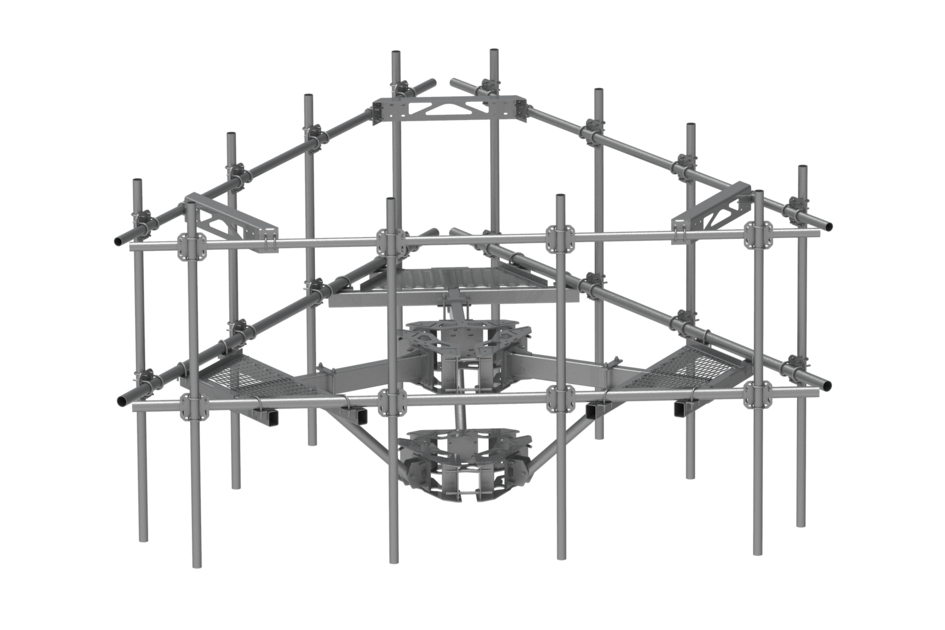

MC-HP12M-12-96-HD | With 2-7/8" antenna pipes
Base Product: MC-HP-SERIES
3-Sector Monopole Co-location Platform Kit, 12 in to 50 in OD, 12 ft 6 in face, includes twelve 2-7/8" x 96 in pipes
Specifications
Product Classification
| Portfolio | CommScope® |
| Product Type | Co-location platform |
| Ordering Note | CommScope® standard product (Global) |
| Warranty | One year |
General Specifications
| Mounting | Monopole, 304.8–1270 mm (12–50 in) OD |
| Pipe, quantity | 12 |
| Sectors, quantity | 3 |
Dimensions
| Height | 2438.4 mm | 96 in |
| Face Width | 3.81 m | 12.5 ft |
| Width | 3810 mm | 150 in |
| Pipe Length | 2438.4 mm | 96 in |
| Mounting Diameter, maximum | 1270 mm | 50 in |
| Mounting Diameter, minimum | 304.8 mm | 12 in |
| Pipe Outer Diameter | 73.152 mm | 2.88 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating Test Method | TIA-5053 | TIA/EIA-222 |
Packaging and Weights
| Included | Plain end pipes (12) | Platform | Rail | Ring mount |
| Packaging quantity | 1 |
| Weight, net | 894.938 kg | 1973 lb |
Product Classification
| Portfolio | CommScope® |
| Product Type | Co-location platform |
| Ordering Note | CommScope® standard product (Global) |
| Warranty | One year |
General Specifications
| Mounting | Monopole, 304.8–1270 mm (12–50 in) OD |
| Pipe, quantity | 12 |
| Sectors, quantity | 3 |
Dimensions
| Height | 2438.4 mm | 96 in |
| Face Width | 3.81 m | 12.5 ft |
| Width | 3810 mm | 150 in |
| Pipe Length | 2438.4 mm | 96 in |
| Mounting Diameter, maximum | 1270 mm | 50 in |
| Mounting Diameter, minimum | 304.8 mm | 12 in |
| Pipe Outer Diameter | 73.152 mm | 2.88 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating Test Method | TIA-5053 | TIA/EIA-222 |
Packaging and Weights
| Included | Plain end pipes (12) | Platform | Rail | Ring mount |
| Packaging quantity | 1 |
| Weight, net | 894.938 kg | 1973 lb |
