RT-PM-B
Base Product: ROOFTOP-MOUNTS-AND-ACCESSORIES

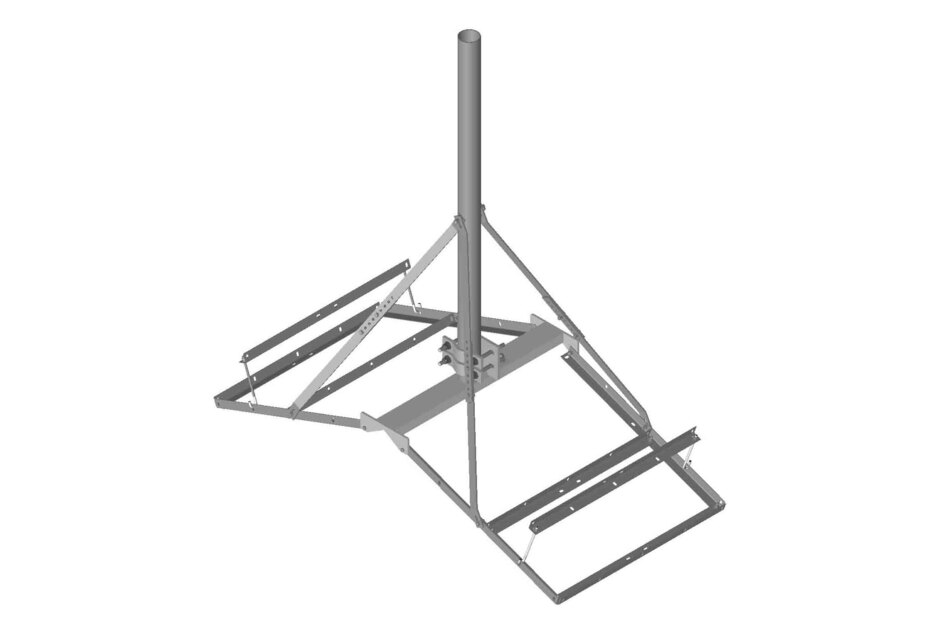

Non-Penetrating Peak Roof Frame for 2 3/8 in to 4 1/2 in OD pipe, pipe not included
Specifications
Product Classification
| Portfolio | CommScope® |
| Product Type | Non-penetrating roof frame |
| Warranty | One year |
General Specifications
| Mounting | Non-penetrating |
| Pipe, quantity | 0 |
Dimensions
| Height | 965.2 mm | 38 in |
| Width | 889 mm | 35 in |
| Length | 1.219 m | 4 ft |
| Pipe Outer Diameter | 60.96 mm | 2.4 in | 73.66 mm | 2.9 in | 88.9 mm | 3.5 in | 114.3 mm | 4.5 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and Weights
| Included | Hardware | Mount |
| Packaging quantity | 1 |
| Weight, net | 47.6 kg | 104.94 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant, Compliant/Exempted |
Product Classification
| Portfolio | CommScope® |
| Product Type | Non-penetrating roof frame |
| Warranty | One year |
General Specifications
| Mounting | Non-penetrating |
| Pipe, quantity | 0 |
Dimensions
| Height | 965.2 mm | 38 in |
| Width | 889 mm | 35 in |
| Length | 1.219 m | 4 ft |
| Pipe Outer Diameter | 60.96 mm | 2.4 in | 73.66 mm | 2.9 in | 88.9 mm | 3.5 in | 114.3 mm | 4.5 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and Weights
| Included | Hardware | Mount |
| Packaging quantity | 1 |
| Weight, net | 47.6 kg | 104.94 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
|
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant, Compliant/Exempted |
