TP-100

Base Product: ROOFTOP-MOUNTS-AND-ACCESSORIES

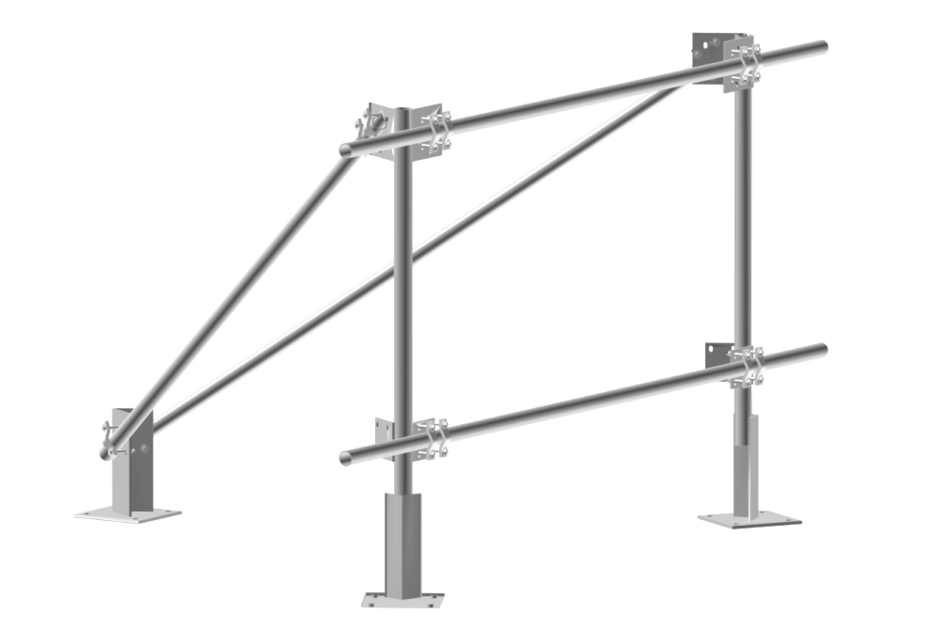

Rooftop Mount

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Rooftop mount

General Specifications

Mounting Penetrating

Dimensions

Height 1905 mm | 75 in
Face Width 3.353 m | 11 ft
Width 3352.8 mm | 132 in
Length 2.896 m | 9.5 ft
Pipe Outer Diameter 60.96 mm | 2.4 in | 73.66 mm | 2.9 in

Outline Drawing

Click on image to enlarge.

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For Specifications, please contact steelproducts@commscope.com or call 800-255-1479

Packaging and Weights

Included Mount
Packaging quantity 1
Weight, net 173.7 kg | 382.942 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product Classification

Product Type Rooftop mount

General Specifications

Mounting Penetrating

Dimensions

Height 1905 mm | 75 in
Face Width 3.353 m | 11 ft
Width 3352.8 mm | 132 in
Length 2.896 m | 9.5 ft
Pipe Outer Diameter 60.96 mm | 2.4 in | 73.66 mm | 2.9 in

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For Specifications, please contact steelproducts@commscope.com or call 800-255-1479

Packaging and Weights

Included Mount
Packaging quantity 1
Weight, net 173.7 kg | 382.942 lb
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
