UGB-0420-G
Base Product: GROUNDING-BUSS-SERIES

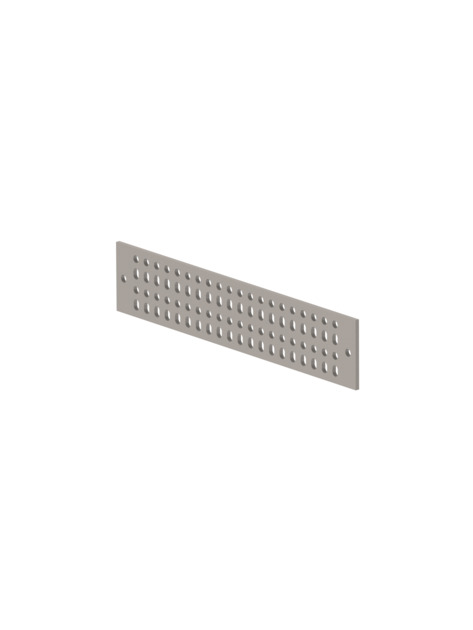

Galvanized Ground Buss Bar (no HW), 1/4 in x 4 in x 20 in
Specifications
Product Classification
| Product Type | Grounding bar |
| Ordering Note | CommScope® non-standard product |
Dimensions
| Height | 101.600 mm | 4 in |
| Length | 508.000 mm | 20 in |
| Material Thickness | 6.350 mm | 0.25 in |
| Hole Size | 7/16 in | 7/16 in x 5/8 in |
| Hole Distance, center to center | 19.05 mm | 0.75 in |
Material Specifications
| Material Type | Galvanized steel |
Packaging and Weights
| Included | Grounding bar |
| Packaging quantity | 1 |
Product Classification
| Product Type | Grounding bar |
| Ordering Note | CommScope® non-standard product |
Dimensions
| Height | 101.600 mm | 4 in |
| Length | 508.000 mm | 20 in |
| Material Thickness | 6.350 mm | 0.25 in |
| Hole Size | 7/16 in | 7/16 in x 5/8 in |
| Hole Distance, center to center | 19.05 mm | 0.75 in |
Material Specifications
| Material Type | Galvanized steel |
Packaging and Weights
| Included | Grounding bar |
| Packaging quantity | 1 |
