WP-198

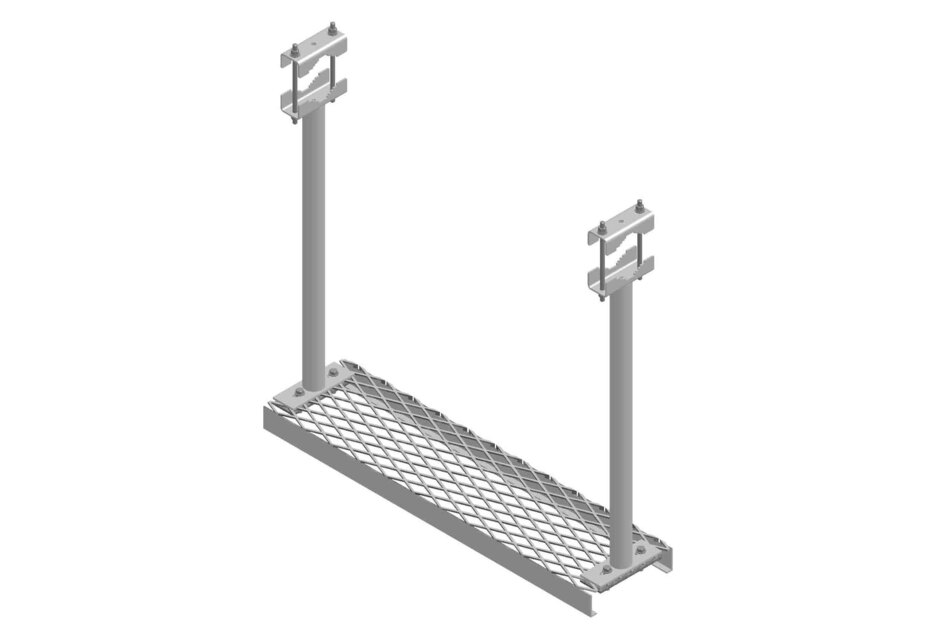

Work Platform for Double Pipe Support Arm
Specifications
Product Classification
| Product Type | Work platforms for support arm |
Dimensions
| Height | 990.6 mm | 39 in |
| Platform Width | 304.8 mm | 12 in |
| Width | 1016 mm | 40 in |
| Length | 304.8 mm | 12 in |
Outline Drawing
| Click on image to enlarge. |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Clamps | Grating | Hardware |
| Packaging quantity | 1 |
| Weight, net | 41.8 kg | 92.153 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product Classification
| Product Type | Work platforms for support arm |
Dimensions
| Height | 990.6 mm | 39 in |
| Platform Width | 304.8 mm | 12 in |
| Width | 1016 mm | 40 in |
| Length | 304.8 mm | 12 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Clamps | Grating | Hardware |
| Packaging quantity | 1 |
| Weight, net | 41.8 kg | 92.153 lb |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Documentation & Downloads
Assembly Drawing
Product Specification
Warranty
Assembly Drawing
Product Compliance Documentation
Product Specification
Warranty
